The flat steel gate adopts professional customized rubber sealing for water sealing, and the stainless steel valve body material meets the standard. Achieve reliable anti-corrosion effect. Flat steel gates are widely used in water supply and drainage engineering to cut off the flow of water in channels. Their working medium is raw water, clean water, and sewage at room temperature.

1. Corrosion resistance, acid and alkali resistance, and most corrosive chemicals, as well as sewage and seawater.

2. Good sealing performance, using rubber to metal sealing, and the large diameter gate sealing rubber ring is a hollow structure, greatly improving the sealing performance.

3. The torque is small. Due to the light weight of the door panel and the small frictional resistance between the door panel and the guide rail, the operating torque of the handwheel is not greater than 100N.

4. The cross section of the water flow is the same width as the channel; The ultra wide type can be made into double lifting points for opening and closing.

5. Strong adaptability to channel depth; Has a simple structure; The characteristic of easy installation.

6. Manual or electric screw type hoists can be selected according to different conditions.

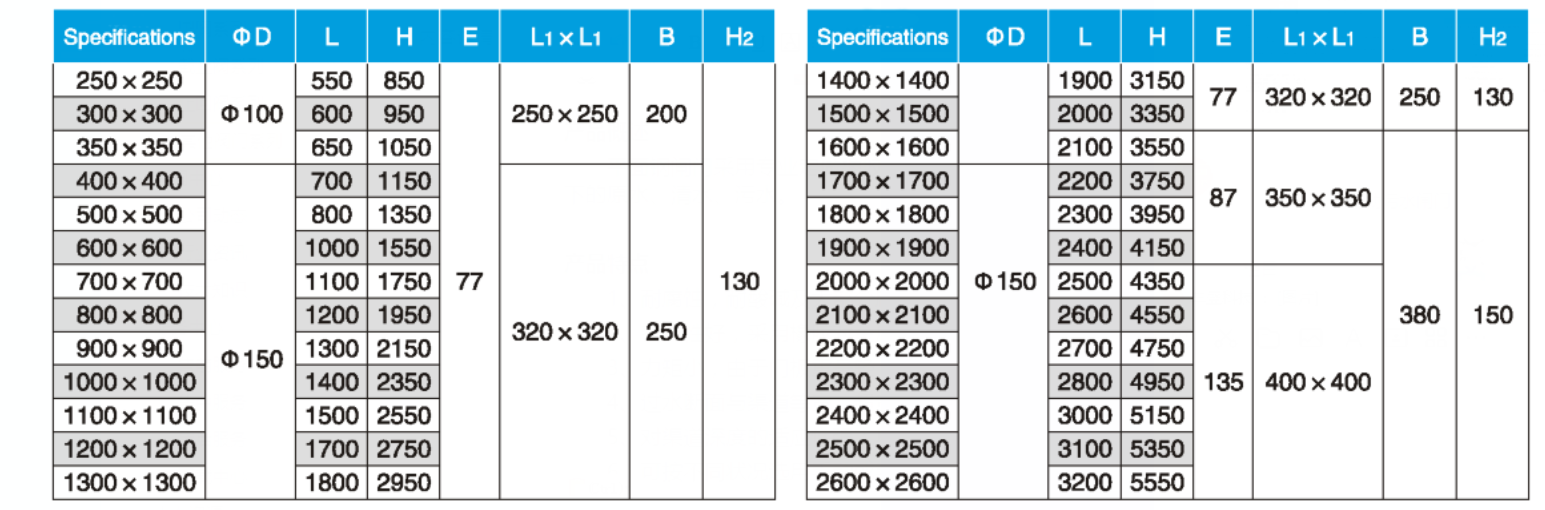

Main external dimensions
