Hygienic grade clamp zero residue ball valve

Product overview

Product model: Q81F-16P

Working temperature: -10 ℃~+135 ℃ Sterilization temperature 150 ℃ (MA * 20MIN)

Valve body material: stainless steel SUS304 SUS316L

Connection method: commonly used quick installation clamp type, other welding type, threaded type, flange type supplementary

Sealing material: PTFE (Teflon)


Product Detail

This type of ball valve series is a sanitary valve used for material transfer control. The clamp is connected to the valve body, which is easy to maintain and can be disassembled without tools. It is smaller, lighter, and more beautiful than other valves, with low operating torque. Regardless of the flow direction of the fluid, the handle can be installed on the side of the valve body, made of 304 or 316 material, and the gasket seat is made of PTFE, which is highly clean and environmentally friendly. Widely used in food and beverage processing, as well as in the pharmaceutical and chemical industries.

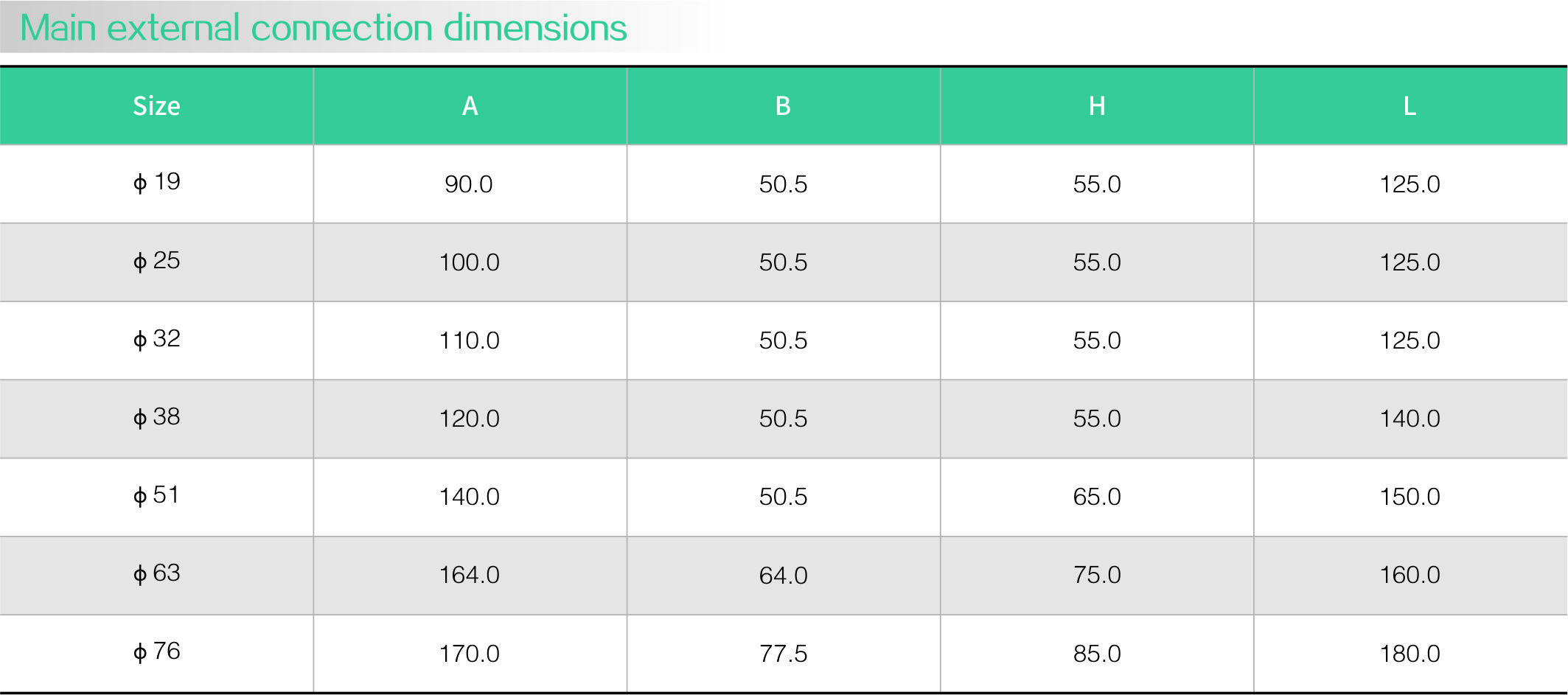

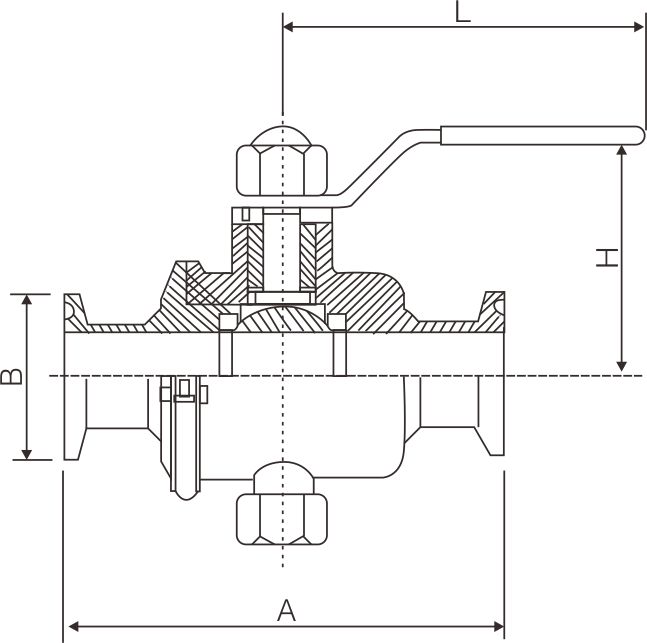

Hygienic grade clamp zero residue ball valve(圖1)


Hygienic grade clamp zero residue ball valve(圖1)
