25P pressure reducing valve

Product overview

Applicable pressure: PN16, PN40

Nominal diameter: DN15-150

Applicable temperature: cast iron 232 ℃, cast steel 232 ℃

Connection method: threaded port, flange

Shell material: cast steel

Applicable media: gas, liquid, steam

Operation mode: automatic


Product Detail

The 25P pressure reducing valve is a new type of pressure reducing valve developed by our company based on advanced foreign products. This product has made significant improvements on the basis of ordinary pressure reducing valves. The diaphragm adopts new materials and increases the working area, so slight changes in upstream pressure or downstream load of the valve can be timely fed back to the main valve diaphragm to adjust the opening of the main valve and ensure the stability of downstream pressure.

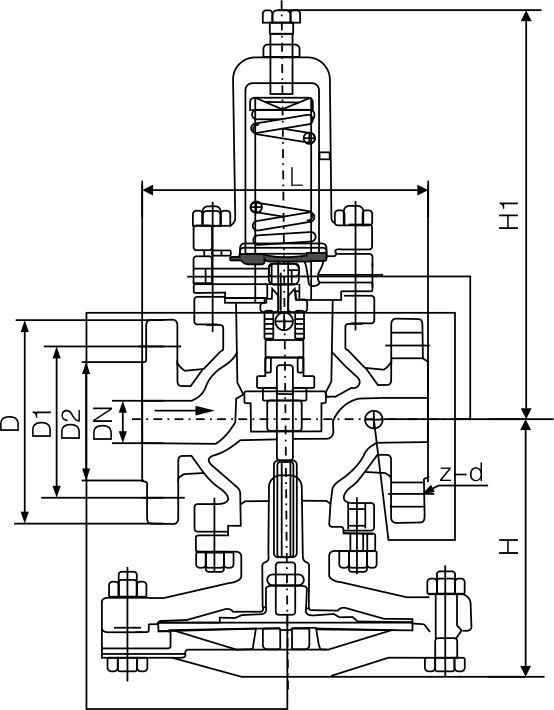

25P pressure reducing valve(圖1)

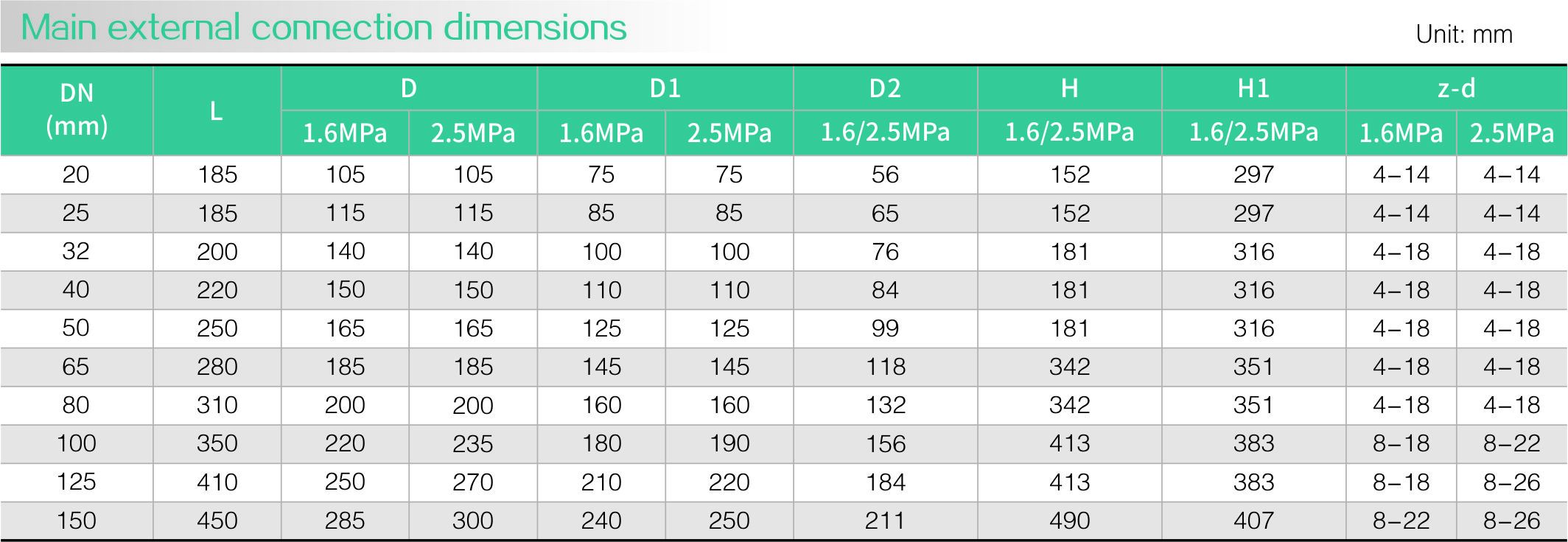

25P pressure reducing valve(圖2)
